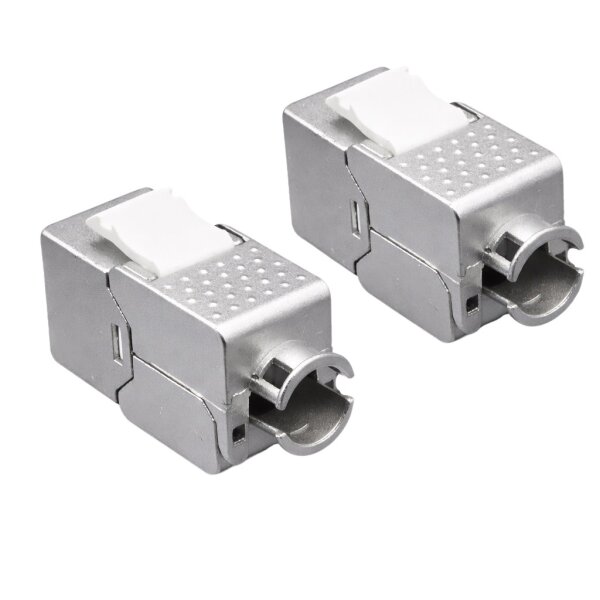

helos RJ45 Keystone 8P8C body { font-family: Arial, sans-serif, line-height: 1.5, color: #333, } h1 { color: #0055A4, } h2 { margin-top: 20px, color: #0073E6, } ul { list-style-type: none, padding-left: 0, } li { margin-bottom: 5px, } table { border-collapse: collapse, width: 100%, margin-top: 10px, } th, td { border: 1px solid #ccc, padding: 8px, text-align: left, } th { background-color: #f2f2f2, } RJ-45 Buchse 8P8C mit modularer Abdeckung Materialien Gehäuse: Zinklegierung Kontakte: Phosphorbronze, vergoldet Isoliermaterial: PC, UL94V-0 IDC: Phosphorbronze, verzinnt, für 22–26 AWG (0,40–0,65 mm) Elektrische Eigenschaften ParameterWert Kontaktwiderstand= 20 mO Isolationswiderstand= 500 MO @ 500 V DC SpannungsfestigkeitDC 1000 V / AC 700 V RMS, 1 min Mechanische Eigenschaften Steckzyklen: = 750 Kabeldurchmesser: 5,0–8,0 mm Plug-In-Kraft: IDC für Solid-Kabel: 22–26 AWG, ID 1,05–1,5 mm 360° Schirmverbindung Umgebung Betriebstemperatur: -10?? bis +60?? Lagertemperatur: -40?? bis +70?? Normen & Konformität ISO/IEC 11801 Class EA bis 500 MHz DIN EN 50173-1, TIA/EIA-568.2-D, IEC 60603-7 PoE: IEEE 802.3af/at/bt RoHS 2.0 & REACH konform Zubehör Anleitung: 1 Stück/Box Kabelbinder 75×1,9 mm: 1 Stück Verpackung 1 Stück pro kompostierbarem PE-Beutel mit Helos-Etikett
Angaben zur Produktsicherheit
Herstellerinformationen:
Helos
, ,
| Produkteigenschaft |
Wert |
| Artikelgewicht: |
0,02 kg
|
